Home > > All-in-one PC

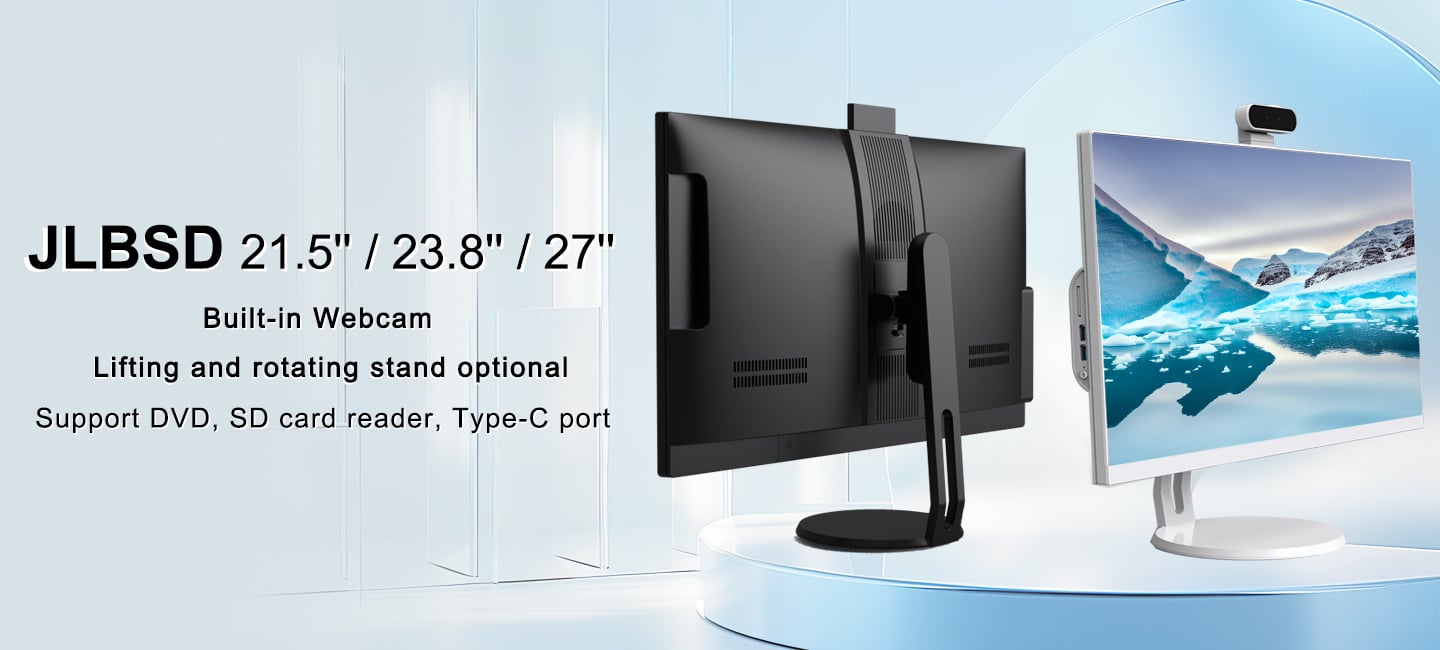

Business office / Home entertainment / Video conference All-in-one pc
Color: Black / White
Size: 21.5-inch / 23.8-inch / 27-inch
Graphic Card: Integrated Graphics
Feature: Touch screen, Built-in Webcam, DVD-RW, SD card reader, Type-C, Lifting and rotating stand
JLBSD model is designed with versatility in mind, making it perfect for any type of productivity. It is capable of running the full range of Intel ® processors. Additionally, VESA compatibility and built-in camera make the JLBSD model ideal solution for forward-thinking businesses.
| Model No. | JLBSD | |
|
1. Frameless screen design; 2. Aluminum Alloy Base; 3. Support DVD, SD & Type-C port; 4. POP-UP Camera; 5. Support replacement of Lifting and rotating stand; 6. Separate CPU Cooler Vent-pipe; 7. VESA Wall-mounted Optional 8. Suitable for high-end Business office, School education, Home entertainment and other industries. |
||
| Item | Description | Remark |
| Display Screen | 21.5 / 23.8 / 27 inchs IPS FHD Screen |
23.8-inch, Touch screen optional 23.8 / 27 inchs, 2K screen optional |
| FHD 1920*1080 Pixels | √ | |
| 250nits typical brightness | √ | |
| High-speed Response | √ | |
| Viewing Angle H:178°,V:178° | √ | |
| 10 Points Capacitive Touch Screen | 23.8 inch Support | |
| CPU | Intel Celeron, Pentium, Core i3 / i5 / i7 / i9 | Optional |
| Mainboard | H61 / H65 / H81 / H310 / H510 / H610, etc. | Optional |
| RAM | 4GB~32GB | Optional |
| Graphics card | Intel HD graphics card ( Integrated Graphics ) | √ |
| HDD | 500GB/1TB HDD; 128GB~1TB SSD | Optional |
| Interface | 2*USB 2.0 | √ |
| 4*USB 2.0 / USB 3.0 / USB 3.1 | According to the motherboard design. | |
| 1*DVD-RW | Optional | |
| 1*SD card reader | Optional | |
| 1*Type-C | Optional | |
| 1*HDMI | √ | |
| 1*VGA/COM, 1*RJ45, 1*Audio In & Out | √ | |
| Speaker | 2*3W High-fidelity Speakers | √ |
| WiFi | Support 802.11b/g/n | √ |
| Bluetooth | BT4.0 (BT5.2 Optional) | √ |
| LAN | 1000Mbit LAN | √ |
| Audio interface | Headphone Output Interface, Microphone Input Interface | √ |
| Video interface | VGA, HDMI | √ |
| Camera | Built-in camera & Dual Mic | 2.0M / 3.0M / 5.0M Camera, Optional |
| Materials | Alloy Base, ABS Plastic Shell | √ |
| Power supply | 110-220V / 100-240V | √ |
| Accessories | Adapter, User manual, Power cord | multi language keyboard & mouse optional |
| Packing size |
21.5-inch: 1 unit / carton: 57*46*18cm. 23.8-inch: 1 unit / carton: 62*49*19cm. 27-inch: 1 unit / carton: 69*53*19cm. |
The size is for reference only, there may be errors in the actual size ±0.5cm. |
| Gross weight |
21.5-inch: 1 unit / carton: 6 kg. 23.8-inch: 1 unit / carton: 8.5kg. 27-inch: 1 unit / carton: 9.5kg. |
The weight is for reference only, there may be errors in the actual size ±1kg. |
| Color | Black/White | |
| Notes: Customer-specified motherboards are supported. It should be noted that the interface between different motherboards will be a little different, and the final interface needs to be confirmed according to the motherboard. |
||
