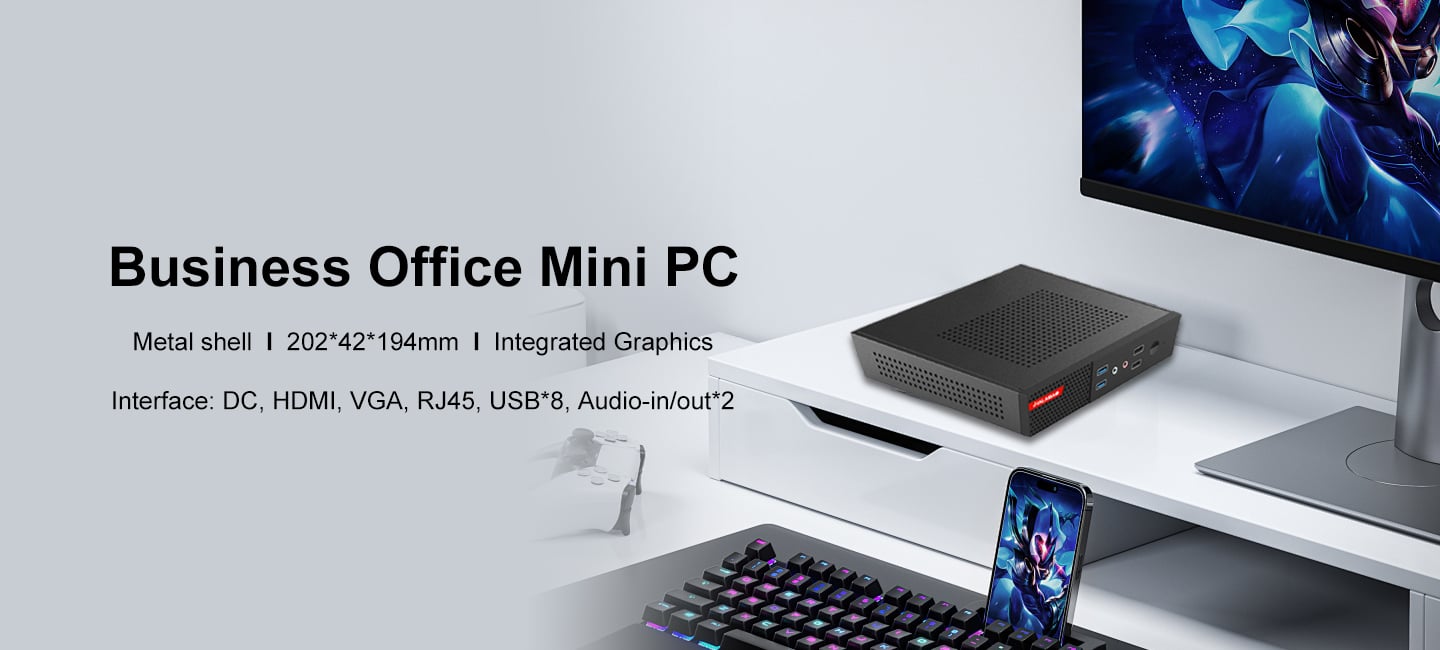

Size: 202*42*194mm
CPU: Intel
Graphic Card: Integrated Graphics

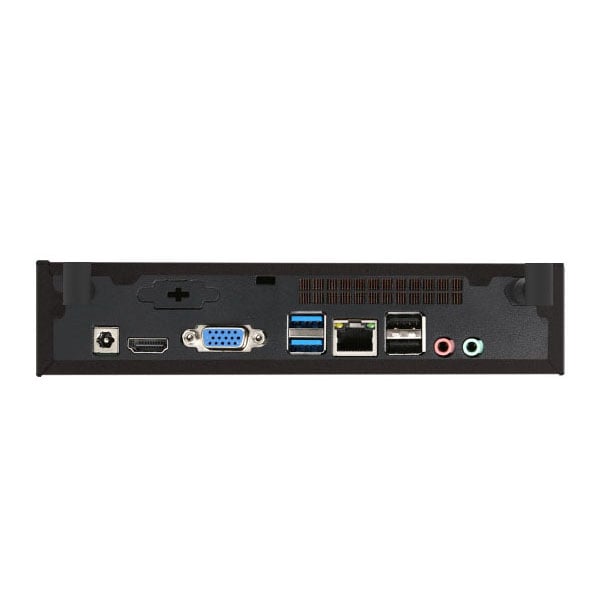

Interface: DC, HDMI, VGA, RJ45, USB*8, Audio-in/out*2
For the ultimate positioning flexibility, the JMIS07 model supports a 100x100 mm VESA compatible mount to save even more space. On the wall or off the ground, it’s ready to use anywhere.
| Model No. | JMIS07 |
| CPU | Intel Celeron, Pentium, Core i3 / i5 / i7 / i9 Optional |
| Mainboard | H61 / H65 / H81 / H310 / H510 / H610, etc. Optional |
| RAM | 4GB~32GB Optional |
| HDD | Intel HD graphics card ( Integrated Graphics ) |
| Graphics card | 500GB/1TB HDD; 128GB~1TB SSD Optional |
| WIFI | Support 802.11b/g/n |
| Bluetooth | BT4.0 (BT5.2 Optional) |
| Interface | HDMI / VGA / LAN / USB Ports*8 / Audio in / Audio Out |
| Support OS | Windows 10/11 home beta version & Linux |
| Power supply | 110-220V/100-240V |
| Accessories | Adapter, Power cord, Standing Stands, HDMI cable |
| Product Size | 202mm(L)*194mm(W)*42mm(H) |
| Notes: Customer-specified motherboards are supported. It should be noted that the interface between different motherboards will be a little different, and the final interface needs to be confirmed according to the motherboard. |
|
